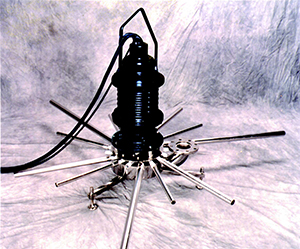

Hurricane
Submersible Aspirator Aerator 2-100 Hp (1.5 to 75 kW)
Ideal for aeration and mixing in digesters, equalization tanks and aeration basins, this 360 degree radially mixing aeration system provides uniform air distribution for fullfloor coverage. Adjustable air diffuser lengths customize each installation and adapt to rectangular or circular basins. Unit can operate as aerator/mixer or just mixer. Completely submerged operation and high oxygen transfer. All stainless steel construction.

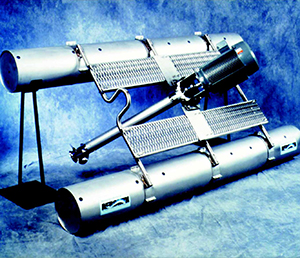

Tornado
Surface Aspiring Aerator 2-100 Hp (1.5 to 75kW)
The unit provides horizontal mixing and aeration ideal for wastewater treatment and supplemental aeration of lagoons and other large basins. Mounted on floats or brackets, this unit features a solid shaft, sealed bearings, and large non-fouling propeller. Optional nonskid work grates provide a safe maintenance platform. Corrosion resistant stainless steel construction - even the floats.

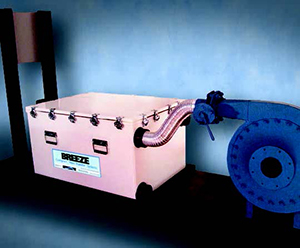

Breeze
Low Profile Mass Transfer System 3 to 9 aerated chambers
This low profile mass transfer system is ideal for air stripping, aeration and air scrubbing. Constructed entirely of rugged polypropylene and stainless steel, it features CYCLONE II diffusers, patented depth control, and a throttle for system optimization. There are no trays, no packing, and no media making the system very easy to maintain. Individual units are capable of handling flow rates up to 200 GPM (757 LPM) with transfer rates exceeding 99.99%.

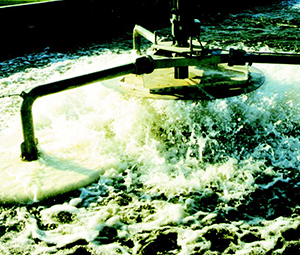

Twister
Low Speed Aerator 2-150 Hp (1.5 to 110kW)
Float or fixed mounted, this unit uses a partially submerged rotating turbine to effectively stir the basin while creating intense air-to-water mixing, resulting in high oxygen transfer. The rotor is specially shaped to throw off debris. Applications include wastewater treatment, leachate treatment, supplemental aeration and SBRs.

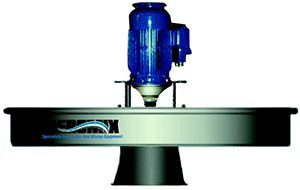

Typhoon
High Speed SurfaceAerator 2-100 Hp (1.5 to 75kW)
This unit produces high pumping rates with a low trajectory for intense air-to-water mixing, resulting in excellent oxygen transfer. Features include a stainless steel foam-fill float, stainless steel non-clogging impeller and stainless steel intake cone. Ideal for wastewater treatment, leachate treatment, supplemental aeration and SBRs.

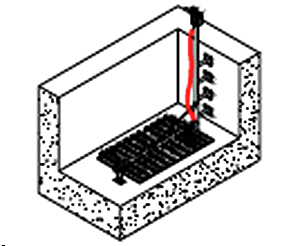

Mist
Package Diffused Air System
Complete drop in and retrievable diffused air grid system includes diffusers, stainless steel drop pipe, flexible air supply line and optional air blower. Simply install the drop pipe, connect the header, wire the blower and your system is complete. Use systems individually or grouped together to meet most aeration and mixing requirements in deep wastewater basins.

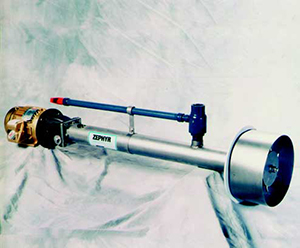

Zephyr
Induced Air Flotation System 1/3 to 5 Hp (.25 to 3.75 kW)
The system creates micro-fine bubbles which adhere to various solids, lifting them to the surface for eventual skimming or disposal. An inexpensive alternative to a DAF system.

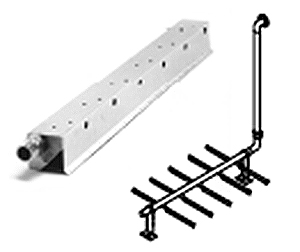

Cyclone
Custom Coarse Bubble Diffuser Piping Systems
Perfect for digesters, aerated grit chambers and deep aeration basins. Stainless steel piping systems with non-fouling diffusers are custom designed for your basin. Diffusers feature a diamond shape with 3 levels of air discharge and a bottom deflector to keep debris out. Custom piping systems made to fit your basin.
